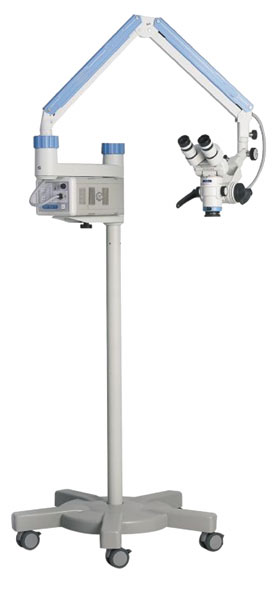

OPERATING HORUS MICROSCOPE
Microscope with floor stand and C-connect video camera
*Straight stereoscopic binocular head. *Coaxial illumination system through the objective. *Halogen lamp 150w, with cooling system.
*High intensity fiber optic illumination.
*Wide field eyepieces, both with dioptric adjustment and protection rubber shells.
*Three-step Galilei magnifications changer.
*Objective f=200mm (Optional 250, 300, 400 mm).
*Focusing by micrometric system.
*Magnifications: with objective f=200mm 5x, 7x, 12x
*Excellent universal movement of the head by means of angular bearings and teflon discs.
*Easy positioning of the head thanks to the system of movement totally mounted on conical bearings. That feature gives an extraordinary, smooth mobility.
*Adjustment of the tightness and blocking of the movements of the head and swivel of the arms.
*The double arm of autocompensated parallelogram fixes any height position.
*Five-wheeled floor stand with brakes.
*llumination system: the cold light source can be removed for other applications like endoscopy. *Beam splitter and high resolution CCD color camera for simultaneous observation and documentation of the images.
