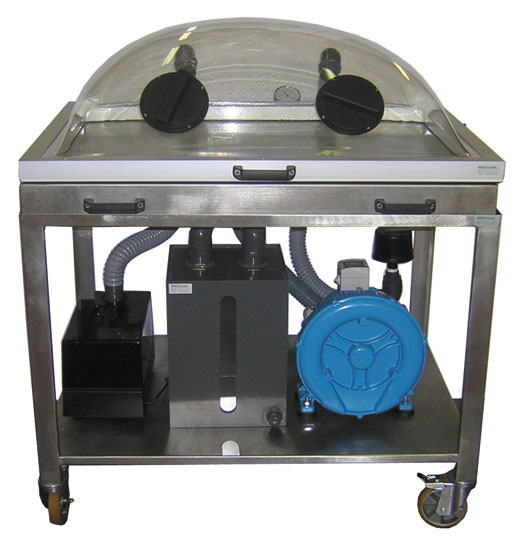

LOW PRESSURE TABLE WITH HUMIDIFIER CHAMBER
versione stampabile
product card
LOW PRESSURE TABLE WITH HUMIDIFIER CHAMBER
details:
LOW PRESSURE TABLE WITH HUMIDIFIER CHAMBER Table complete with pump and humidification chamber. The table low pressure consists of a stainless steel structure in closed sides and fitted with a grid drilled at the top. On the one hand is positioned a tap for the drainage of liquid products sucked from the grid. To control the level of emptiness there is a vacuumgage check valve placed in intermediate position on the suction pipe. For the vacuum is used to pump channel side with a range of 210 m3/he depression maximum 160 mbar. Dome mounted on metal frame by hinges complete with piston opening functioning gas. Steam generator cold ultrasound. Filter air input for operation dome closed. Floor structure with wheel made of stainless steel and settler PVC window level transparent. Features table Dimensions: 100 x 70 cm Weight (without pump): 40 Kg Technical pump Power: 220 Volt / 50 Hz single phase Power: 1.5 KW - 2800 rpm Flow: 210 m3 / h Vacuum max: 160 mbar Weight : 22,5 Kg


last modification:
3-/-0/2016




ARTICLE description pack size pack code.

69657 LOW PRESSURE TABLE WITH HUMIDIFIER CHAMBER
